Advanced User Interface (AUI)

Award-Winning Technology at Your Finger Tips

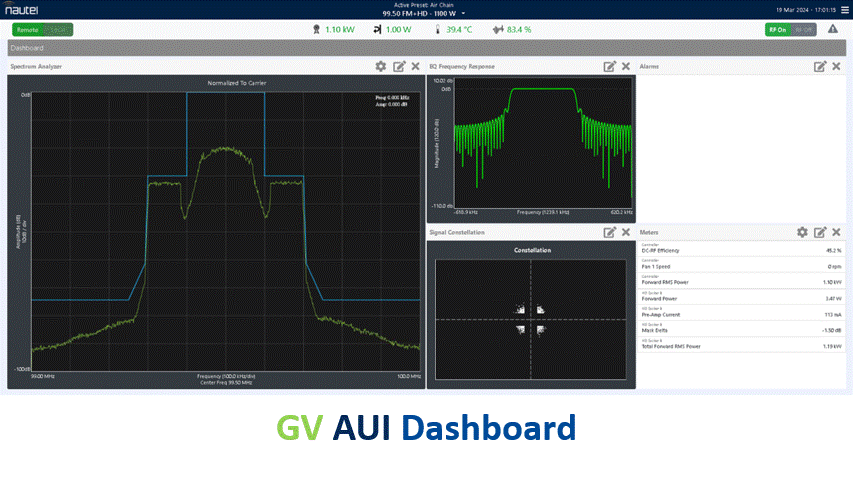

AUI GV Series FM Transmitter
Nautel’s latest generation of transmitters were conceived with the intent to place enhanced control into the hands of engineers so that they could become more efficient in their work. Specifically our goal was to place more control and monitoring at the engineer’s finger tips than had ever been possible before whether the engineer was local to the transmitter or remote.

Given that control, our aim was to ensure fast diagnosis of transmission related issues, provide information that would allow engineers to be more proactive in their work and ultimately avoid trips to the transmitter site and achieve both time and financial savings.

The AUI can be accessed locally with a user provided laptop and remotely using the internet. Screens are easy to set up and read, and clearly display the parameters you need to see. No matter where you are, you’re only moments away from ensuring your transmitter is operating optimally.

Features

  • Built-in commercial grade instrumentation
  • 100% remote access
  • SNMP support
  • Instrument grade audio spectrum analyzer
  • Comprehensive monitoring and control
  • Extensive logging of all events
  • Email notifications
  • Presets and easy transmitter control
  • Enhanced support services

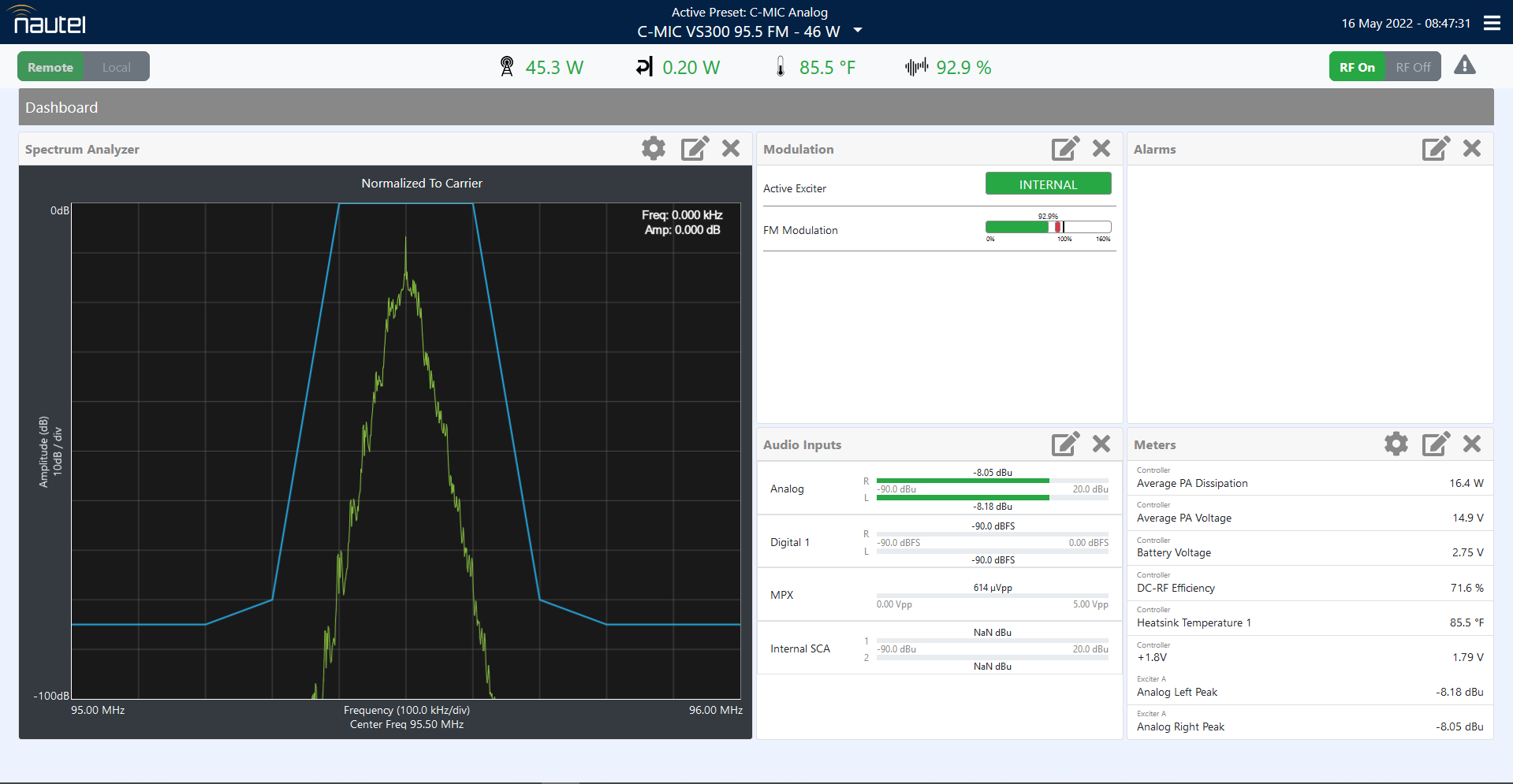

BUILT-IN COMMERCIAL GRADE INSTRUMENTATION

RF and audio spectrum analyzers are included and pre configured to allow instantaneous analysis with out the need to set up or purchase expensive stand alone equipment costing thousands of dollars.

AUI on NX50 AM transmitter

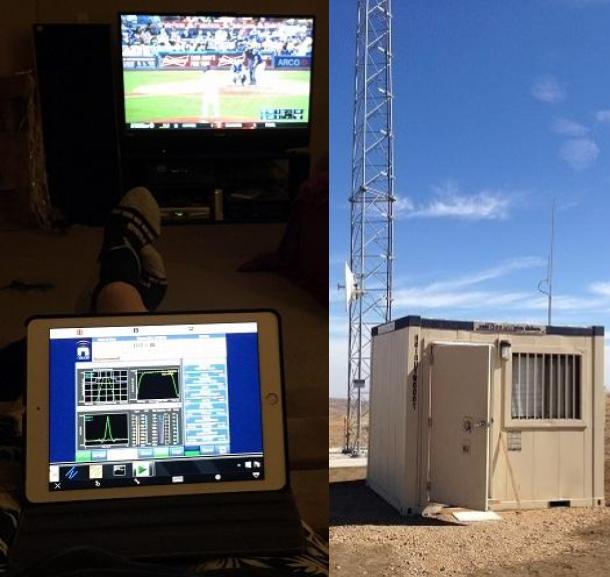

100% REMOTE ACCESS

No matter where you are, you’re only moments away from ensuring your transmitter is operating optimally. Open a web browser, enter your transmitter’s IP address and password and you’re connected. 100% of the local display functionality is available on any web-enabled device.

Nautel AUI SNMP

SNMP SUPPORT

The AUI also supports Simple Network Management Protocal (SNMP), a network protocol that allows network management systems or a network operations center (NOC) to monitor network-attached transmitters.

LOGGING AND EMAIL

Full logging of faults which can be stored indefinitely, downloaded on command or exported to Excel spreadsheets for analysis plus email notification of specific faults (user programmable) are standard features.

ENHANCED SUPPORT SERVICES

By building advanced control capability into equipment, vendors can dramatically change the support experience for the broadcast engineer. In Nautel’s case the engineer can permit a shared screen support session so that the Nautel service technician can “drive” the transmitter and expedite resolution of a customer issue. This same concept can be employed to enable remote assisted transmitter commissioning and post install optimization services.
