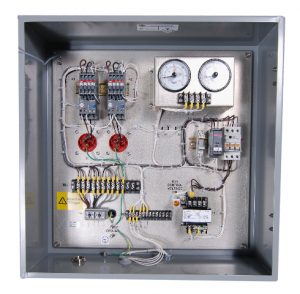

NXL panel

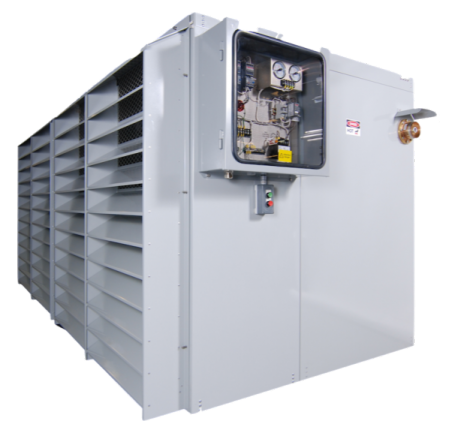

High Power MW Test Loads

Nautel NXL test loads are the ideal add-on for high power Medium Wave installations. They are available in a range of sizes, to match your requirements.

In addition to customers around the world, NXL loads are used extensively by Nautel as part of our testing procedures, so these units have proven reliability and in-the-field robustness.


  • Suitable for indoor or outdoor use
  • Fully sealed and slanted top to prevent water penetration
  • Louvered front and back panels
  • Rated for 50% above label power
  • Frequency Range: 530 – 1,700kHz operation
  • VSWR: 1.05:1 maximum
  • Available in 50/100/200/300 kW power levels
