SC4 Controller

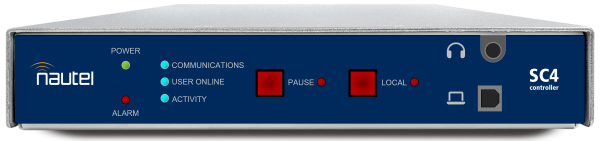

SC4 Controller Front Panel

Main/Standby & N+1 Controller

The SC4 Controller (powered by Davicom) is an SNMP-based system controller for Nautel AM and FM transmitters, and is available in Main/Standby and N+1 configurations.

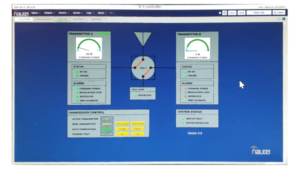

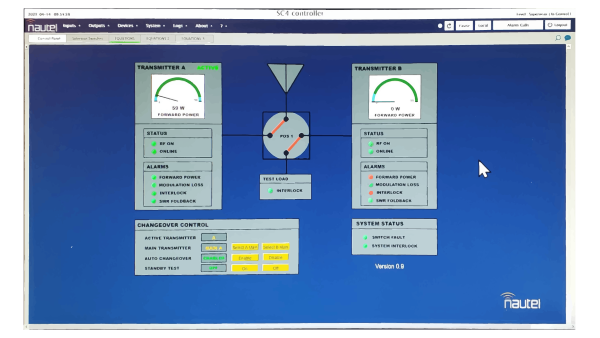

SC4 dashboard user interface
The SC4 HTML5 remote user interface provides real-time status and changeover control.


  • Pre-configured for Nautel transmitters
  • SNMP-based
  • 1 RU, half-width
  • HTML5 user interface
  • Site audio, remote listen or speak
  • Pause/local mode front panel controls
  • Health indicator from panel LEDs

Product Family Support: VX (GV, NVLT, NX, & VS in development)

Connectivity: Ethernet 100BASE-T


  • Dimensions:(WxHxD): 9.5×1.75×12 in / 24.1×4.4×30.5 cm
  • Weight: 2.75 lb / 1.25 kg
  • Mounting: standard 19″ rack mountable
  • Temperature range: 32°F to 158°F / 0°C to 70°C
  • Power 12 VDC

Warranty: Nautel 4-year warranty

Brochure: Nautel SC4 Controller
